Product description

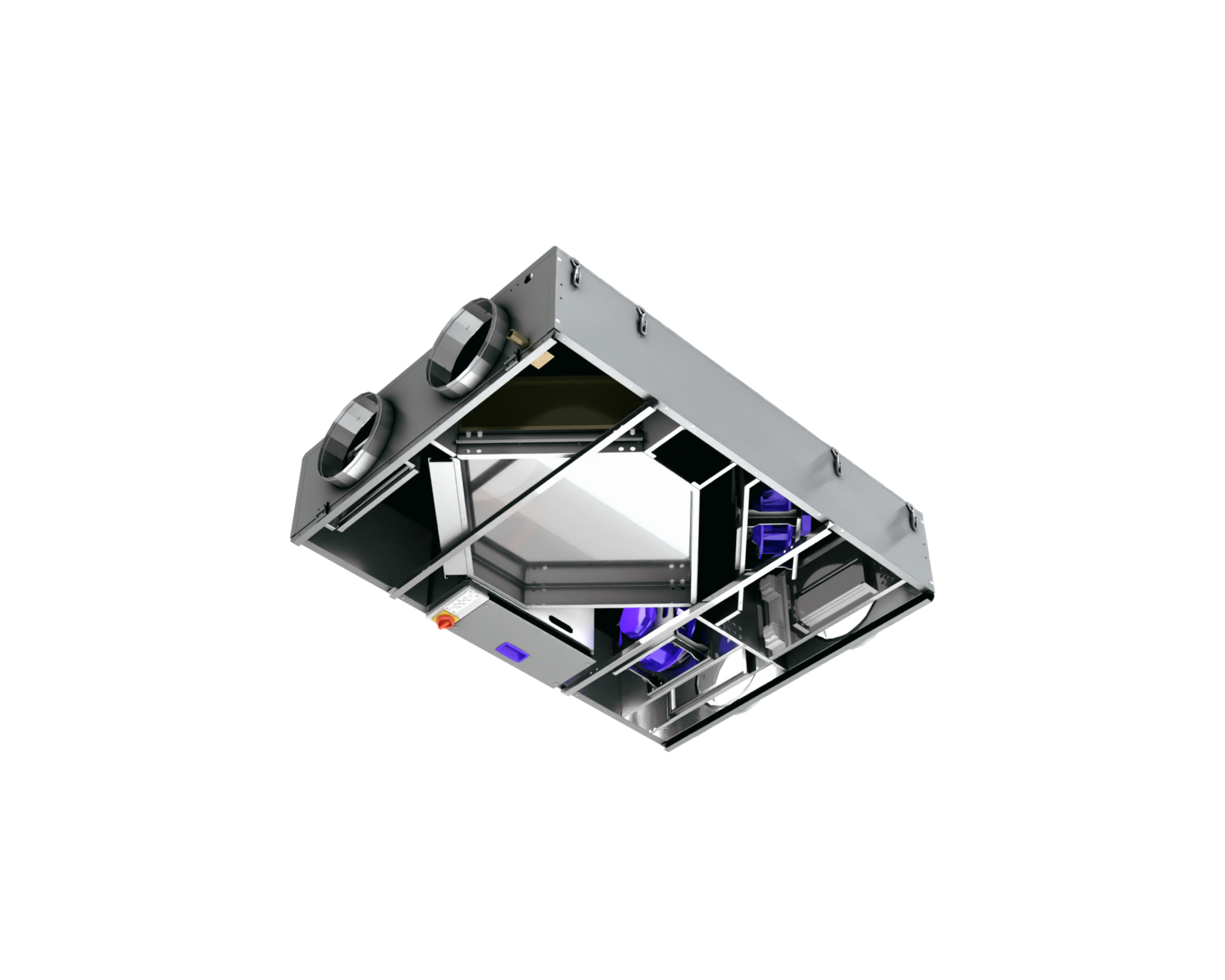

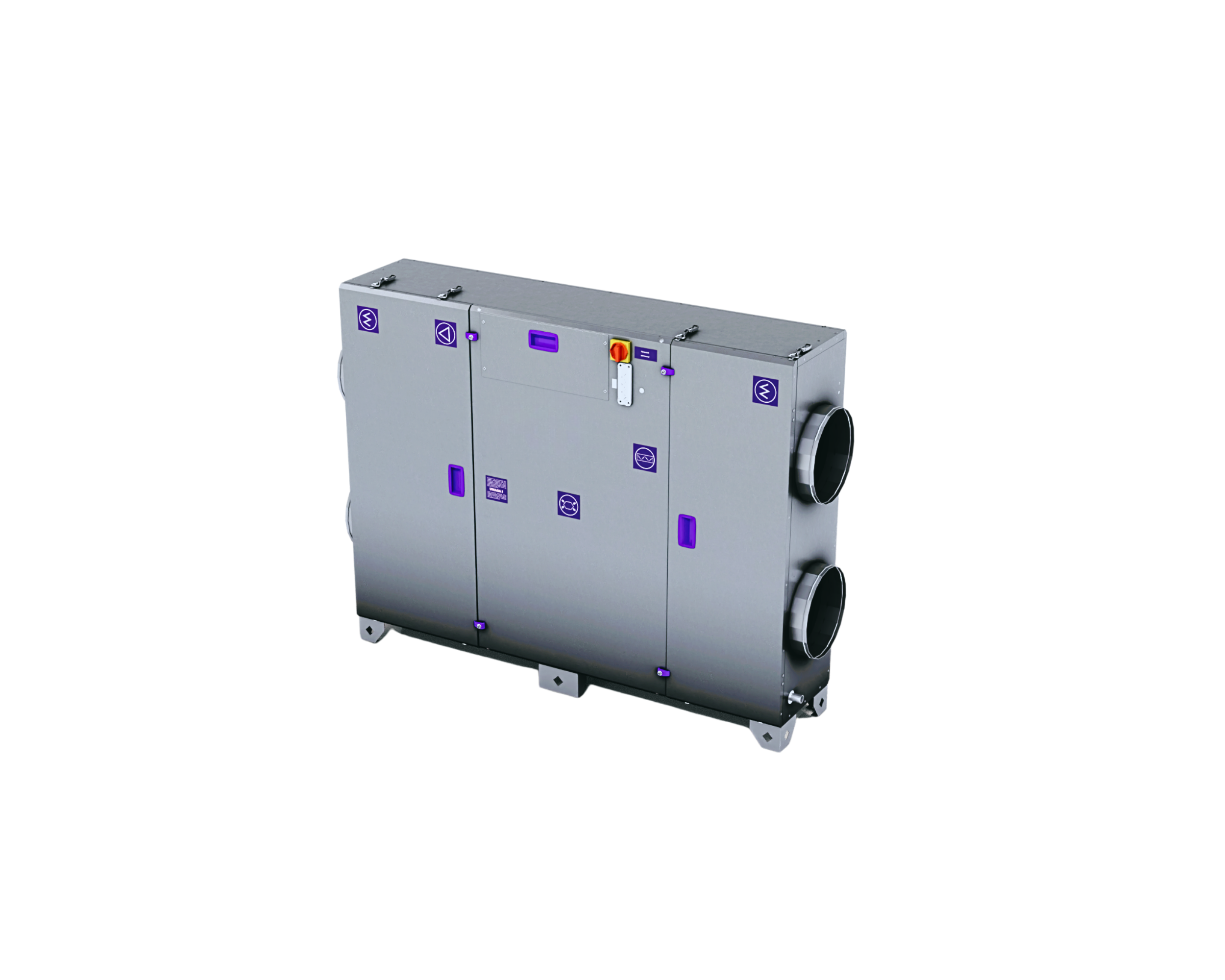

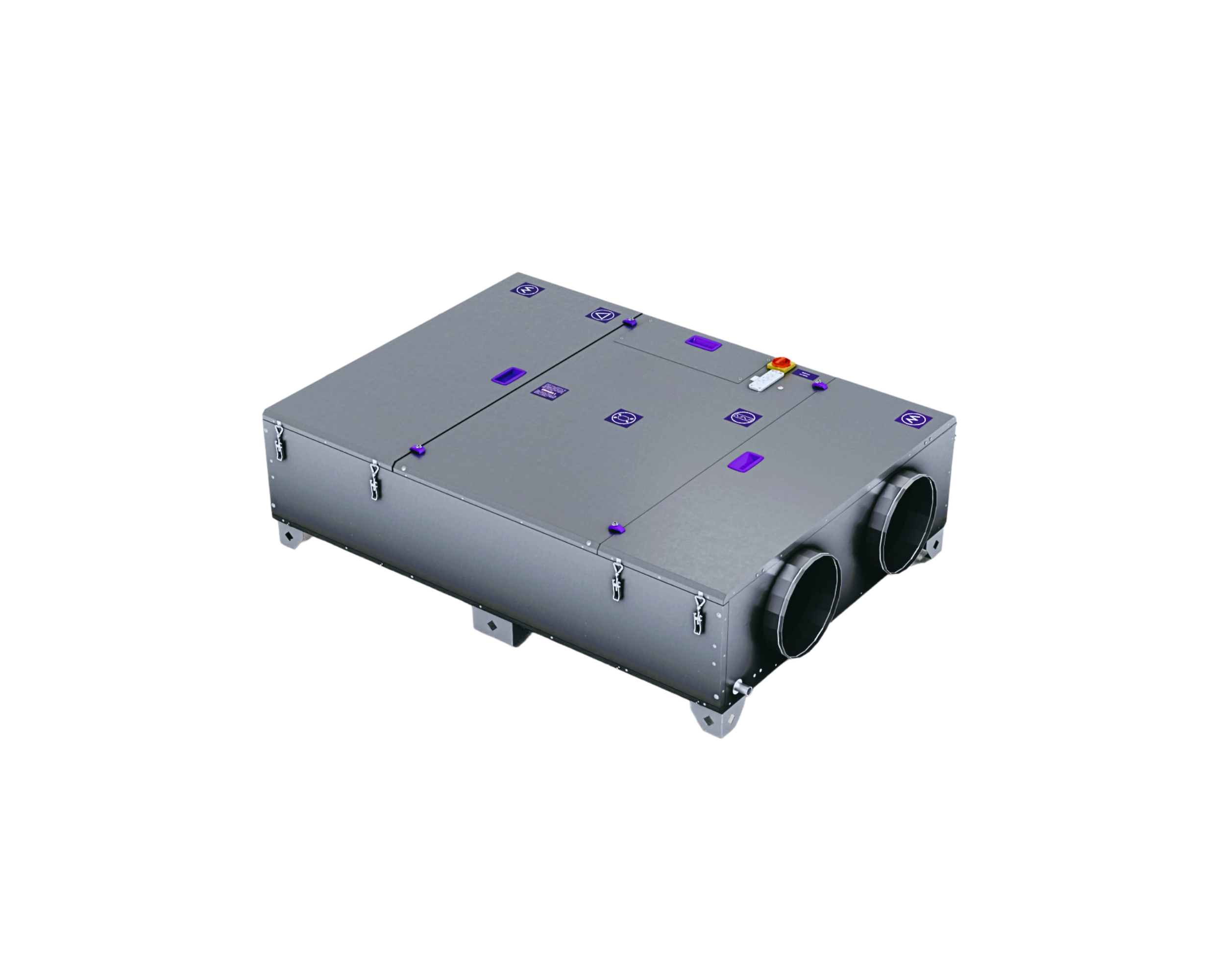

The SPS ECOBOX² H air handling unit is a compact unit equipped with a counterflow (size 1-4) or crossflow (size 5) heat exchanger. The product line includes 5 sizes with capacities from 100 to 2500 m³/h. The unit is designed for indoor installation in a suspended, standing or legged system. The unit's compact dimensions allow installation in small spaces.
100-2500m³/h
Counter-current
Internal
Self-supporting
Compact
Plug&Play
Product features
- 5 basic sizes
- Unit efficiency from 100 to 2500 m³/h
- Counter-current (size 1-4) or cross-current (size 5) heat exchanger
- Heat recovery efficiency of up to 83% (sizes 1-4)
- Self-supporting construction
- Internal installation (in a suspended or standing/legged system)
- Panel type filter class: ISO Coarse>65% (G4) / ISO ePM10 50% (M5) / ISO ePM1 70% (F7)
- Panel type housing consisting of removable covers
- Inspection covers attached by convenient hinges
- Highly resistant housing plating:
- internal: made of galvanized sheet metal
- external: made of coated sheet Magnelis ZM310
- Insulation of the unit with a thickness of 30mm (A1 class non-flammable wool)
- Energy-saving and quiet EC engines in IE4 class
- PTC electric heater / water heater
- Power and control switchgear integrated with the unit
- Plug&Play automation with internal wiring
Additional options (unit can be enhanced with additional mating sections)
- Channel section of water/freon cooler
Energy saving
VBW Engineering's compact air handling units are equipped with heat exchangers that guarantee effective heat recovery, achieving efficiency of up to 93%. In addition, the compact units are equipped with energy-saving EC engines, as well as multifunctional automation, which, when properly configured, allows savings to be achieved from reduced electricity demand.
Przeciwprądowy wymiennik ciepła
Zastosowanie najnowszego typu przeciwprądowego (heksagonalnego) wymiennika ciepła, gwarantuje najwyższą efektywność energetyczną oraz sprawność odzysku ciepła sięgającą nawet do 93%.
Dobór nagrzewnicy
Podczas doboru urządzenia, zależnie od potrzeb klienta, dajemy możliwość doboru nagrzewnicy elektrycznej PTC lub wodnej.
High efficiency EC motors
(E4 efficiency class)
Novel design
(no thermal bridges, reduced noise level)
Compact dimensions allow
the use in false ceilings.
Technical data
Automation and Plug&Play
For manufactured air-handling units, VBW Engineering delivers complete automation systems. VBW Engineering can also install, commission, and service the HVAC units with the aid of highly qualified and experienced service personnel. The HVAC unit control solutions are always adapted to the specific project requirements for the building and its users’ individual needs.
The idea of the PLUG & PLAY automation system is to prepare the control system of the air handling unit so that it is ready for immediate operation.
VBW Engineering offers air handling units together with a factory-fitted automation system. Internal wiring and switchgear with the controller mounted on the air handling unit.
Advantages of using
the PLUG & PLAY system
(cost reduction)
caused by difficult atmospheric conditions
qualified technicians
electrical terminations, certified cable junction boxes and connections
